- Polyimide F46 film
-

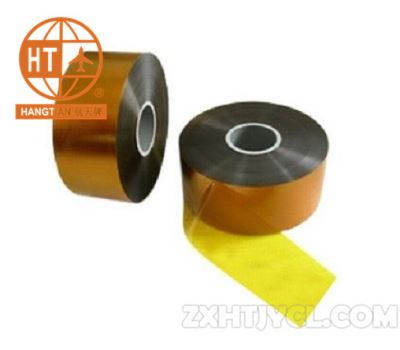

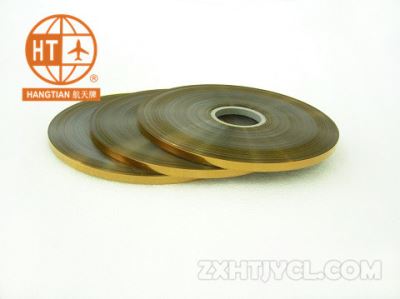

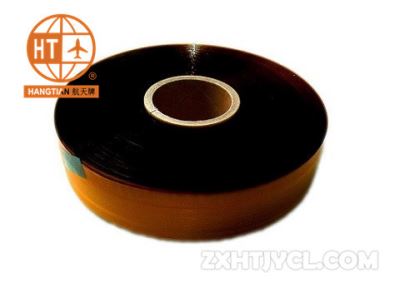

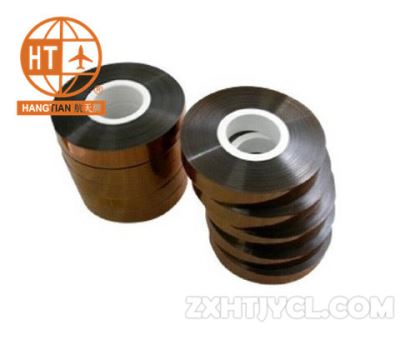

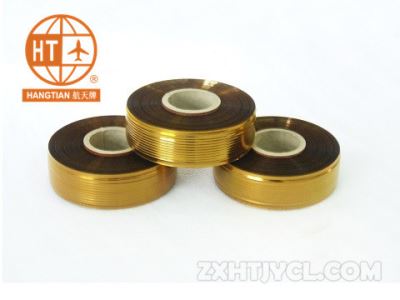

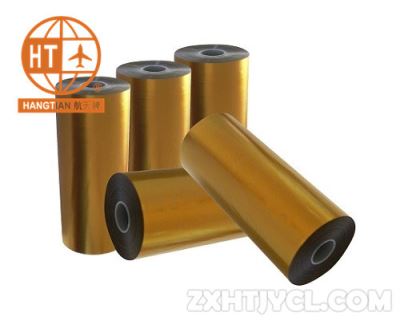

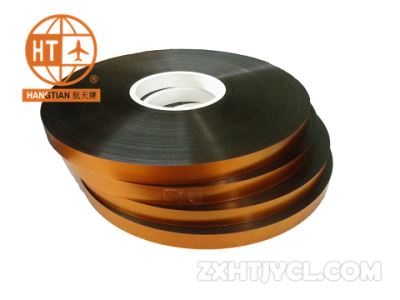

- Polyimide F46 Film Type of the products:FH/FHF Film, FEP Film ,HNFilm, kapton ,019,616 The FH/FHF film of our company are made by dipping and coating FR 463 emulsified solution on polyimide casting film, then sintered with high temperature. It has the excellent characters of polyimide, in electric insulating, resistance to high temperature, radiation and corrosion as well as seal under high temperature ect.
- Introduction
- Parameters
-
1. Structure
The FH/FHF film of our company are made by dipping and coating FR 463 emulsified solution on polyimide casting film, then sintered with high temperature. It has the excellent characters of polyimide, in electric insulating, resistance to high temperature, radiation and corrosion as well as seal under high temperature ect.
2. Technical Data
Properties
Units
Values
Tensile Strength
MPa
≥110
Elongation
%
≥50
Stripping Strength
N/25mm
≥6
Breakdown Strength
KV/mm
≥150
Dielectric Constant at 50Hz.
-
≤4.0
Loss Tangent at 50 Hz.
-
≤ 0.004
Quality system：ISO 9001:2016 Standard No ：Q-320581DLH001-2014
3. Application
extensively used for insulation layers of wire, cable and electromagnetic line as well as insulation for various H – grade motors.
Remarks:
FH Film: Single-side ; FHF Film: Double-side
F Layers: 0.005 ～ 0.0125mm
Thickness: 0.03 ～ 0.075mm,The Whole Thickness: ≤10%
Width: The width from 8mm to 660 mm can be divided for you according to your requirements.
Internal Diameter: 40mm; 50mm; 76mm,Packing: carton for export
The shelf life is 1 year counted from the date of delivery
* All above are commonly used standard data, Non-standard please consult with us. -
