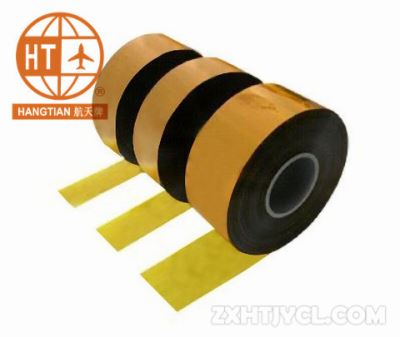

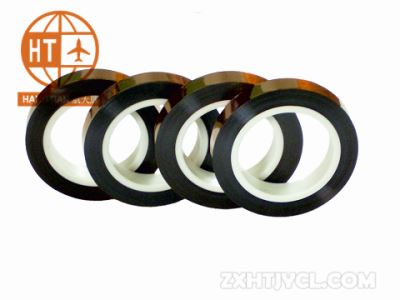

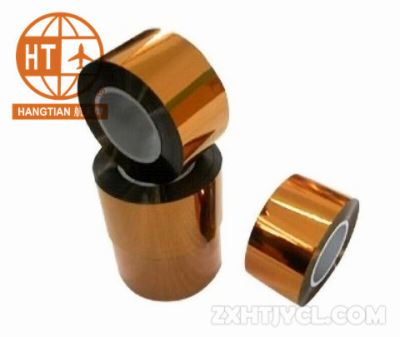

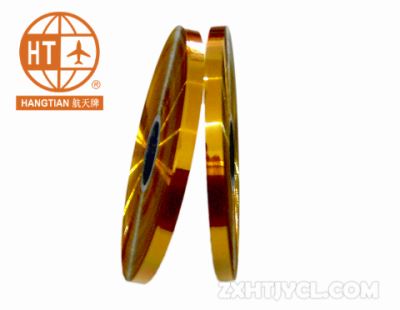

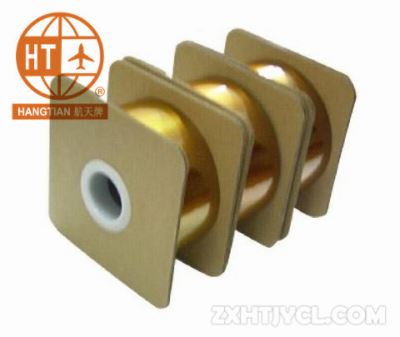

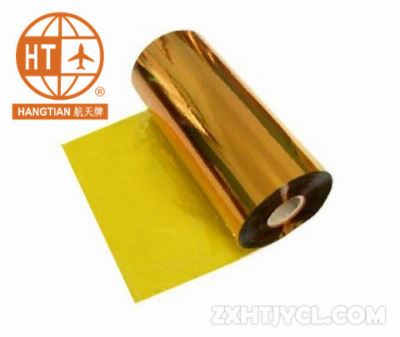

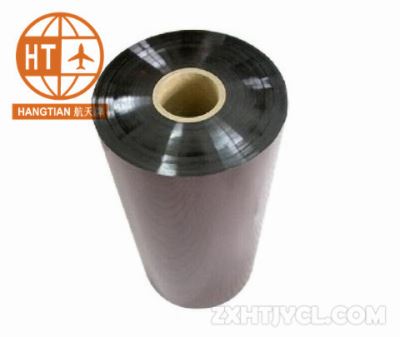

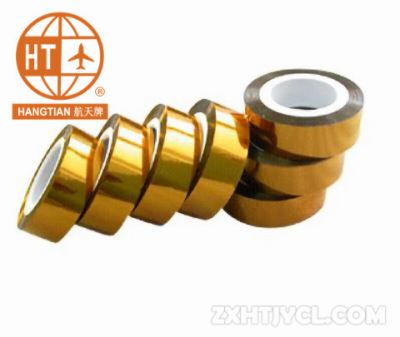

- Polyimide film
- Introduction
- Parameters
-
1.Structure and Property
The polyimide casting film of our company is produced by polymerizing and casting pyromellitic dianhydride and 4.4 diaminodiphenyl ether to form H-grade insulating film.
It has following good properties:
(1)good properties of insulation and tensile strength;
(2)good temperature – resistance and used in wide temperature range, between -60℃～+250℃ for a long period and between –269℃～+400℃ for a short period without changing in tensile strength or insulating property.
(3)good chemical stability and resistance to corrosion.
(4)excellent flame retardant property
(5)good radio-resistance. After the film being irradiated with r ray of 109 remain its properties unchanged.
(6)can be complexed with many materials, when complexed with fluorine resin moisture protection and corroision resistance are greatly improved.
2.Main Specifications
No.
Items
Unit
Values
Typical Values
25micro
50micro
75 micro
100 micro
25micro
50micro
75 micro
100 micro
1
Density
--
1.42 + 0.02
1.42 + 0.02
2
Tensile strength
Vertical
MPa
≥135
165
140
Horizontal
≥115
145
130
3
Elongation
%
≥ 35
50
70
4
Shrinkage
150℃
%
≤1.0
≤0.5
400℃
≤3.0
-
5
Breakdown Strength50Hz
MV/m
150
130
110
180
150
6
Surface Resistivity 200 ℃
ohm
≥1.0x10^13
≥1.0x10^13
7
Volume Resistivity 200℃
ohm.m
≥1.0x10^10
≥ 2.8x10^10
8
Dielectric Constant 50Hz
--
3.5 + 0.4
3.2
9
Loss tangent 48~62Hz
--
≤4.0x10^-3
≤2.8x10^-3
Quality system：ISO 9001:2016 Standard No ：GBT 13542.6-2006
3.Application:
(1)applied to electromagnetic wire, high-temperature cable, motor, electric machine, electric appliance;
(2)polyimide film tape, electric insulating tape and so on.
Remarks:
Width: 8～ 660mm, or Cutting to tapes according to your requirements.
Thickness: 0.025～0.125mm Tolerance: +-10%. Non-standard please consult with us.
Packing: carton for export
Main Specifications:
No.
Items
Unit
Values
Typical Values
25micro
50micro
75 micro
100 micro
25micro
50micro
75 micro
100 micro
1
Density
--
1.42 + 0.02
1.42 + 0.02
2
Tensile strength
Vertical
MPa
≥135
165
140
Horizontal
≥115
145
130
3
Elongation
%
≥ 35
50
70
4
Shrinkage
150℃
%
≤1.0
≤0.5
400℃
≤3.0
-
5
Breakdown Strength50Hz
MV/m
150
130
110
180
150
6
Surface Resistivity 200 ℃
ohm
≥1.0x10^13
≥1.0x10^13
7
Volume Resistivity 200℃
ohm.m
≥1.0x10^10
≥ 2.8x10^10
8
Dielectric Constant 50Hz
--
3.5 + 0.4
3.2
9
Loss tangent 48~62Hz
--
≤4.0x10^-3
≤2.8x10^-3
Quality system：ISO 9001:2016 Standard No ：GBT 13542.6-2006
Remarks:
Width: 8～ 660mm, or Cutting to tapes according to your requirements.
Thickness: 0.025～0.125mm Tolerance: +-10%. Non-standard please consult with us.
Packing: carton for export
