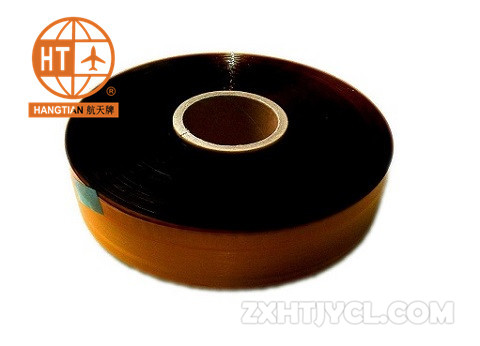

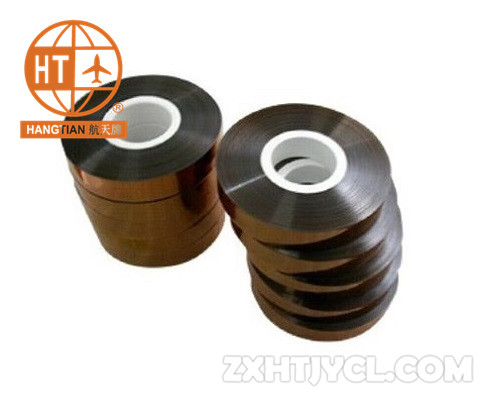

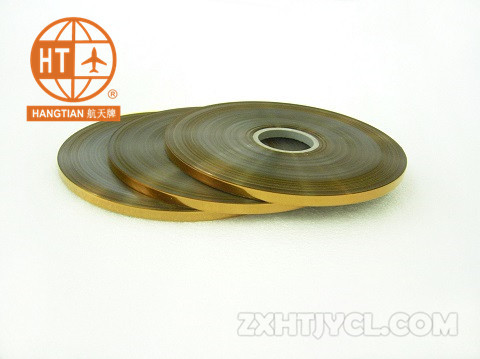

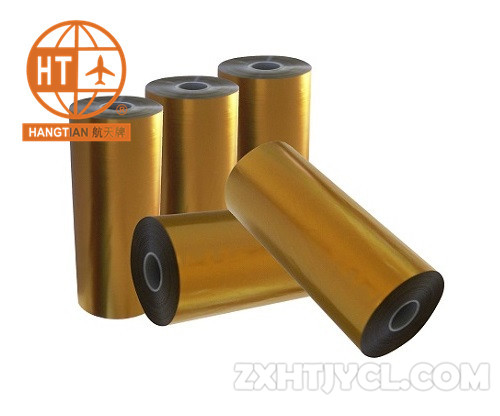

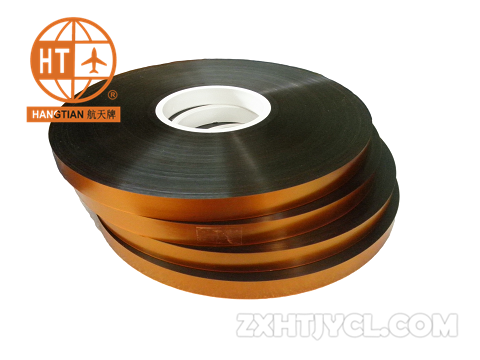

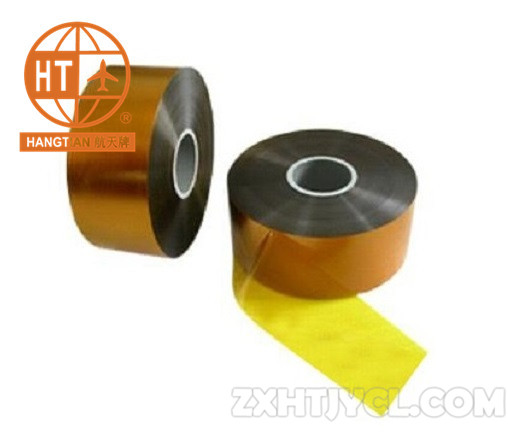

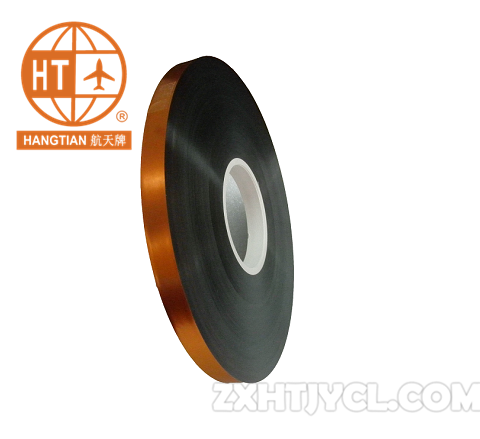

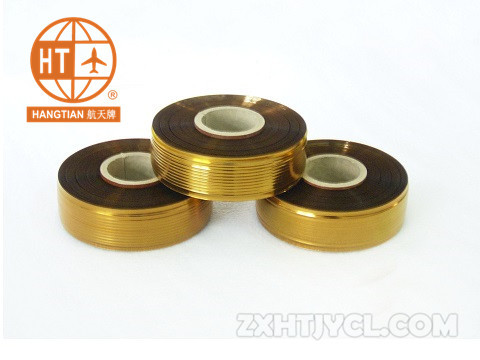

Polyimide F46 Film

1.Structure

The FH/FHF film of our company are made by dipping and coating FR 463 emulsified solution on polyimide casting film, then sintered with high temperature. It has the excellent characters of polyimide, in  electric insulating, resistance to high temperature, radiation and corrosion as well as seal under high temperature ect.

2. Technical Data

                        Quality system：ISO 9001:2016     Standard No ：Q-320581DLH001-2014

3. Application

extensively used for insulation layers of wire, cable and electromagnetic line as well as insulation for various H – grade motors.

Remarks:

FH Film: Single-side ; FHF Film: Double-side

F Layers: 0.005 ～ 0.0125mm

Thickness: 0.03 ～ 0.075mm,The Whole Thickness: ≤10%

Width: The width from 8mm to 660 mm can be divided for you according to your requirements.

Internal Diameter: 40mm; 50mm; 76mm,Packing: carton for export

The shelf life is 1 year counted from the date of delivery

* All above are commonly used standard data, Non-standard please consult with us.

Technical Data

                        Quality system：ISO 9001:2016     Standard No ：Q-320581DLH001-2014

Remarks:

FH Film: Single-side ; FHF Film: Double-side

F Layers: 0.005 ～ 0.0125mm

Thickness: 0.03 ～ 0.075mm,The Whole Thickness: ≤10%

Width: The width from 8mm to 660 mm can be divided for you according to your requirements.

Internal Diameter: 40mm; 50mm; 76mm,Packing: carton for export

The shelf life is 1 year counted from the date of delivery

* All above are commonly used standard data, Non-standard please consult with us.
